10x Visium Tutorial (PDAC demo)

This page demonstrates a minimal, runnable (“dry-run”) object → Step1–Step4 workflow to showcase how stGrads analyzes 10x Visium data.
The demo dataset references: Khaliq AM, Rajamohan M, Saeed O, et al. (2024) Nat Genet. 56(11):2455–2465. doi:10.1038/s41588-024-01914-4.

Prepare a lightweight Visium object

Use any Visium sample’s Space Ranger outs/ folder. Below is a small, fast setup to get a dry-run object called st1.t1. The sample was used in If you already have st1.t1 built elsewhere, skip to Step1.

# Core packages
library(Seurat)
library(ggplot2)
library(patchwork)

# stGrads package
# If your package is installed with namespace 'stGrads', use:
library(stGrads)
#! If you have download the PDAC_update.rds

# Example directory structure
# data/PDAC/
#   └─ Patient01_Primary/
#        └─ outs/
#             ├─ filtered_feature_bc_matrix.h5
#             └─ spatial/
#                 ├─ tissue_lowres_image.png
#                 ├─ scalefactors_json.json
#                 └─ tissue_positions.csv (or tissue_positions_list.csv)

data_root <- "data/PDAC"
sample_id <- "IU_PDA_T1"

st1.t1 <- Load10X_Spatial(
  data.dir = file.path(data_root, sample_id, "outs"),
  filename = "filtered_feature_bc_matrix.h5",
  assay    = "Spatial",
  slice    = sample_id,
  filter.matrix = TRUE
)

# Optional: subset to speed up demo (e.g., keep 300–500 spots)
if (ncol(st1.t1) > 500) {
  set.seed(1113)
  st1.t1 <- subset(st1.t1, cells = sample(colnames(st1.t1), 500))
}

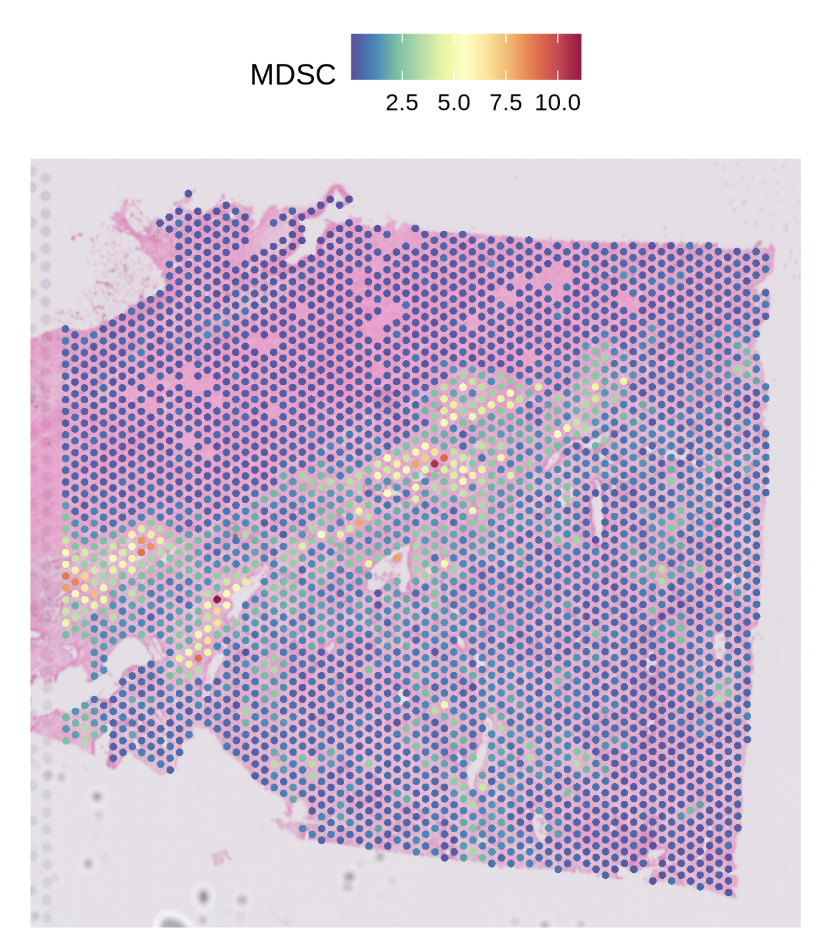

SpatialFeaturePlot(st1.t1,features = 'MDSC',pt.size.factor = 4e3)

Run the stGrads Visium Demo (Step1–Step4)

The following steps mirror your Demo_for_Visium.r. Each step begins with a ### header and includes compact notes about arguments and expected outputs.

Step1 — Find primary infiltration spots of a target cell type

Goal: identify “primary” spots for a chosen cell type (e.g., MDSC) based on cell type proportion and a quantile cutoff. Key args:

  • celltype_prop: column storing the proportion of a specific cell type per spot.

  • celltype: name of the new classification column to write (e.g., "MDSC_spot").

  • probs: quantile cutoff (e.g., 0.9 means top 10% by proportion → labeled as primary).

# Find primary infiltration spots of neutrophils (here using MDSC as the example)
# celltype_prop: given proportion column for target cell type
# celltype: output label column
# probs: quantile cutoff (q90)
st1.t1 <- FindPrimSpot(
  seurat.obj   = st1.t1,
  celltype_prop = 'MDSC',
  celltype      = 'MDSC_spot',
  probs         = 0.9
)

# Inspect classification counts (example output is illustrative)

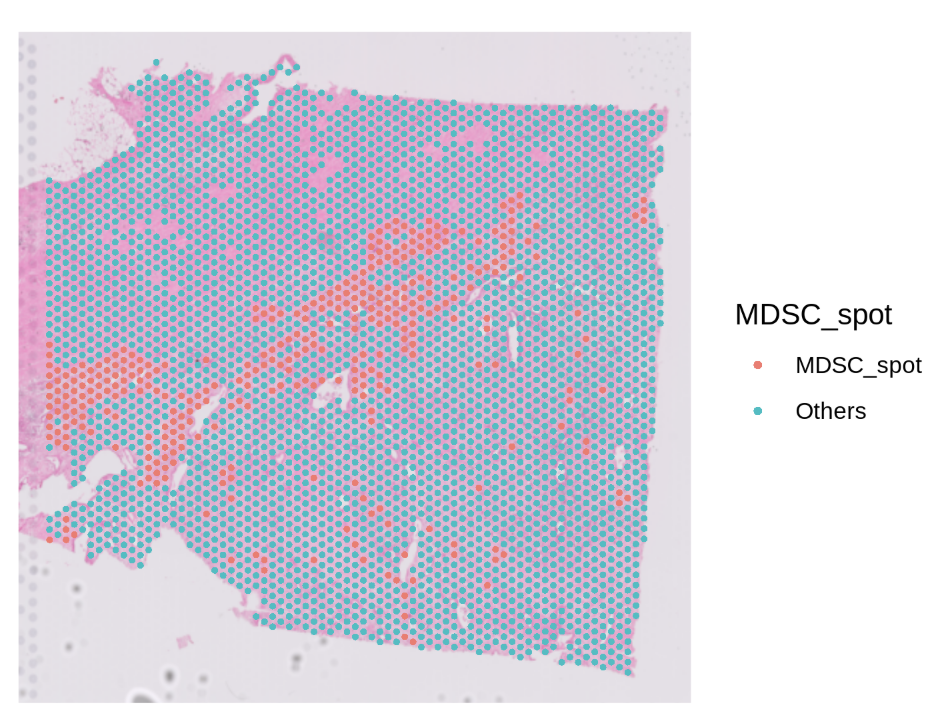

table(st1.t1$MDSC_spot)
# MDSC_spot  Others
# 353        3177

Step2 — Compute nearest-spot distances and (optionally) interaction strength

Goal: for each “primary” (reference) spot, compute nearest neighbors (by ring distance) and optionally a strength metric based on a chosen model. Key args:

  • celltype: the classification column created in Step1 (e.g., "MDSC_spot").

  • pheno_choose: list of specific reference spots (generally NOT recommended, keep NULL).

  • calc.strength: whether to calculate strength between reference and neighbors.

  • model: 'Linear' | 'Log' | 'Exp' strength decay model.

  • max.r: how many distance rings to evaluate (Visium tip: max.r = 4 ≈ 200 μm if spot pitch ≈ 55 μm).

df.res <- CalcNearDis(
  st1.t1,
  celltype      = 'MDSC_spot',
  pheno_choose  = NULL,       # NOT RECOMMENDED now
  calc.strength = TRUE,
  model         = 'Linear',   # 'Linear' | 'Log' | 'Exp'
  max.r         = 10          # for Visium you can use 4; here 10 shows a wider range
)

# df.res is a data.frame summarizing nearest-ring relationships (and strength if requested)
head(df.res)

Step3 — Visualization (basic distance map)

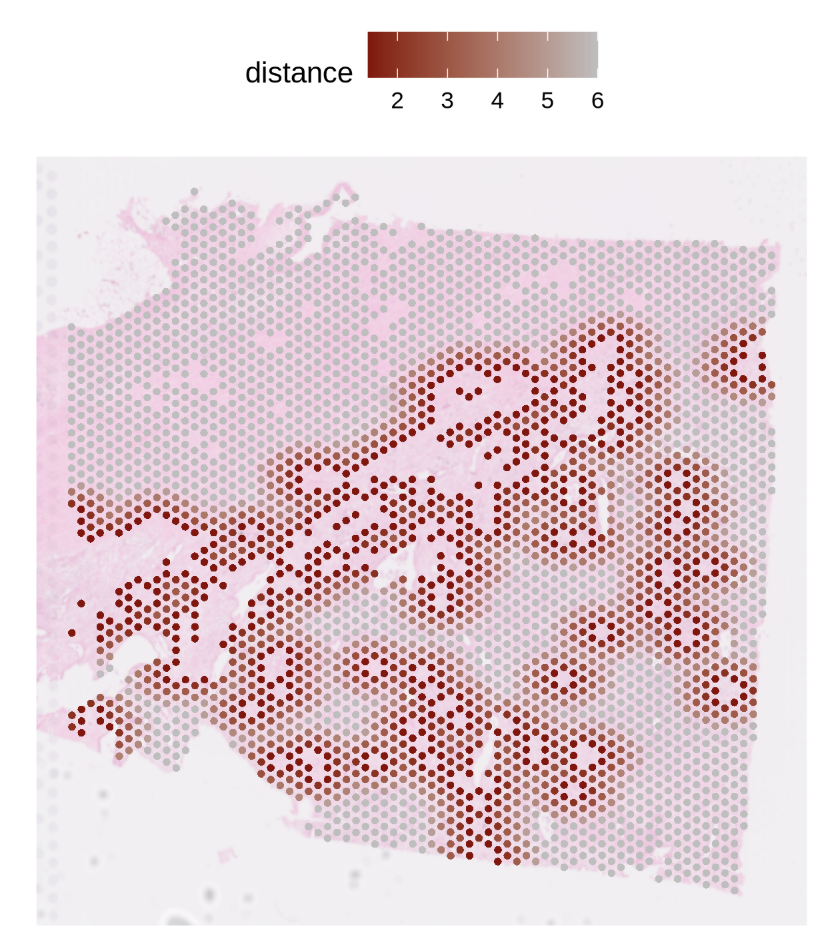

Goal: visualize nearest-spot distance rings around primary (reference) spots.

PlotNearDis(
  st1.t1,
  nearest_ref_info = df.res,
  color            = c('darkred','gray'),
  shape            = 21,
  max.dis          = 6,
  image.alpha      = 0.5,
  img.use = 'lowres',
  pt.size.factor   = 4e3
)

Step3 — Visualization (interaction strength map)

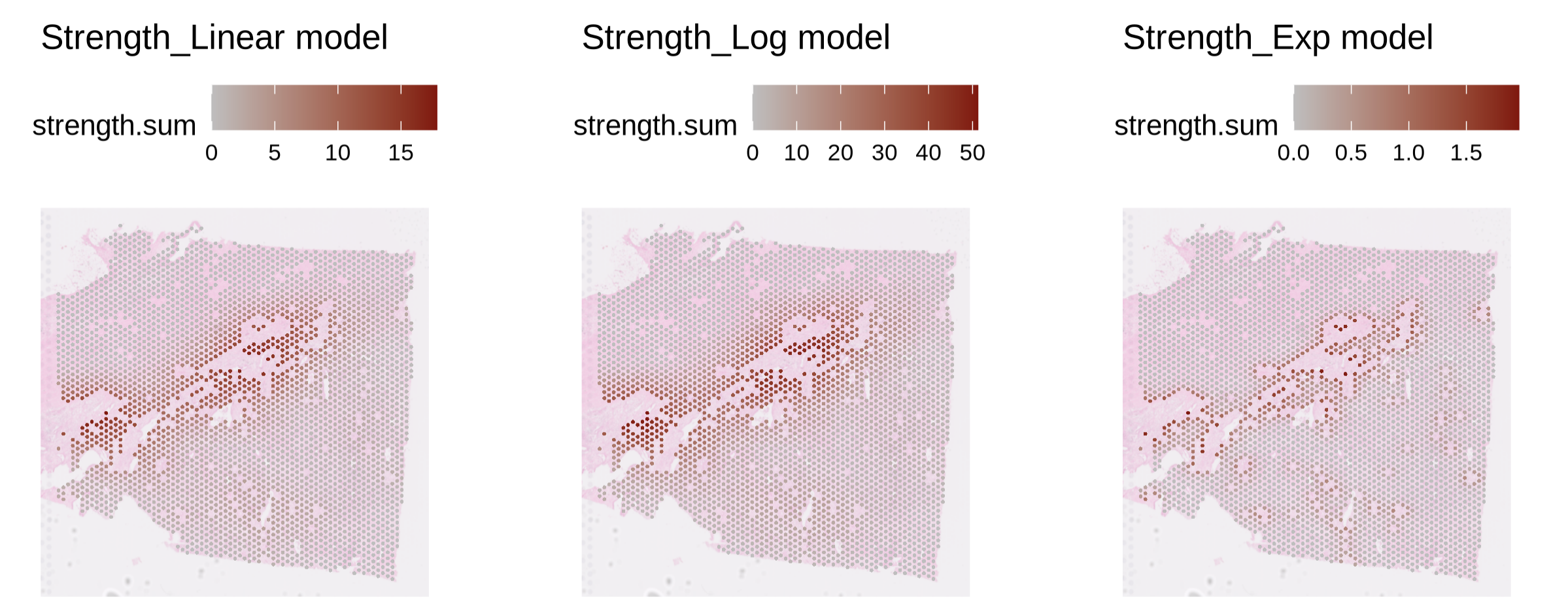

Goal: visualize the strength profile (as defined in Step2) from reference to neighbors.

PlotStrengthDis(
  st1.t1,
  df.res,
  color        = c('gray','darkred'),
  image.alpha  = 0.5,
  pt.size.factor = 4e3
)

Step4-1 — Correlate gene expression with interaction strength

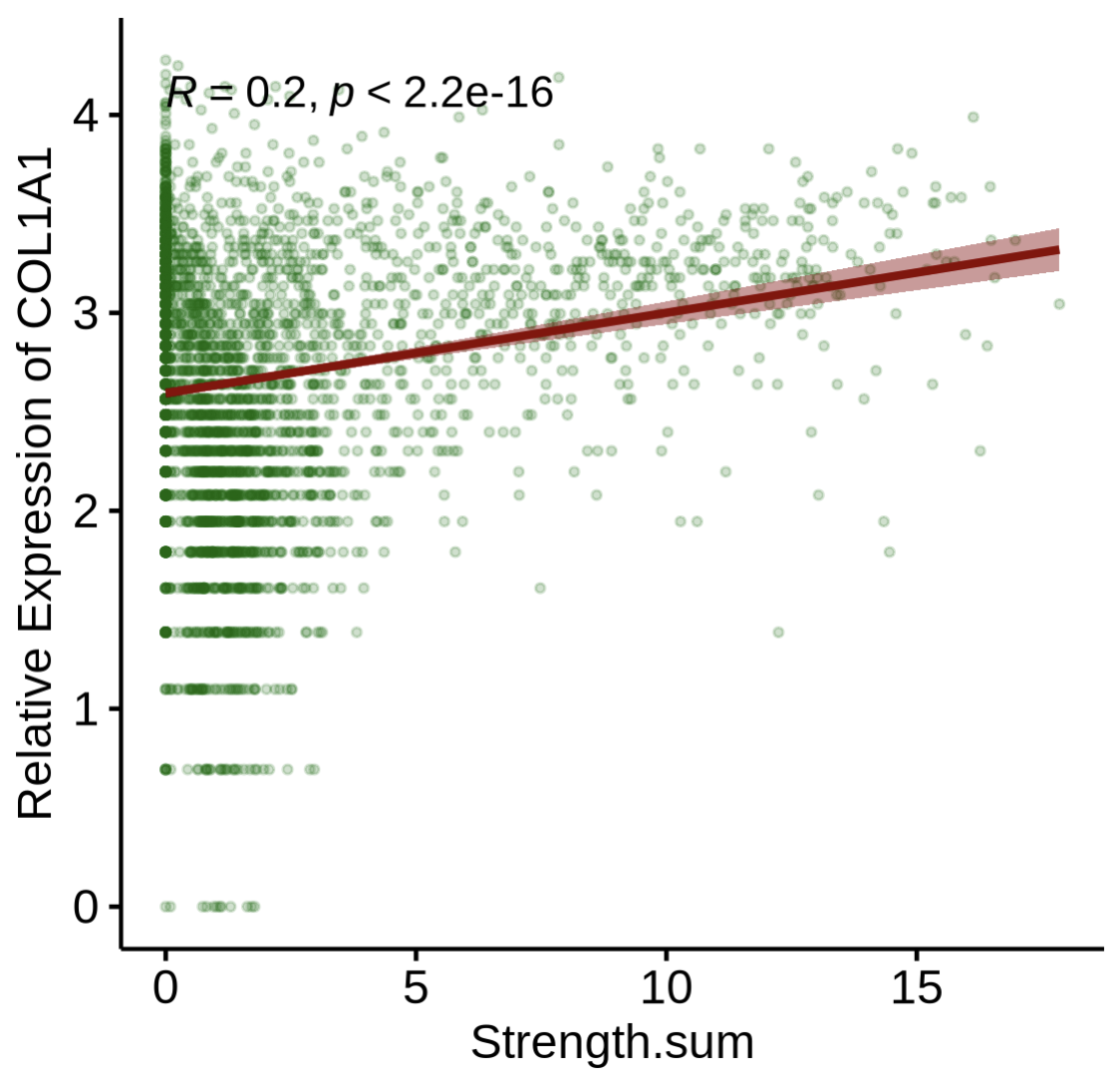

Goal: examine how gene expression relates to computed strength. Key args:

  • layer/assay: which data layer/assay to read expression from (e.g., layer='data', assay='SCT').

  • gene: gene symbol of interest (e.g., "COL1A1" in PDAC stromal context).

PlotStrengthExpr(
  st1.t1,
  df.res,
  image.alpha    = 0.5,
  pt.size.factor = 4e3,
  layer          = 'data',
  assay          = 'SCT',
  gene           = 'COL1A1'
)

Step4-2 — Correlate gene expression with distance

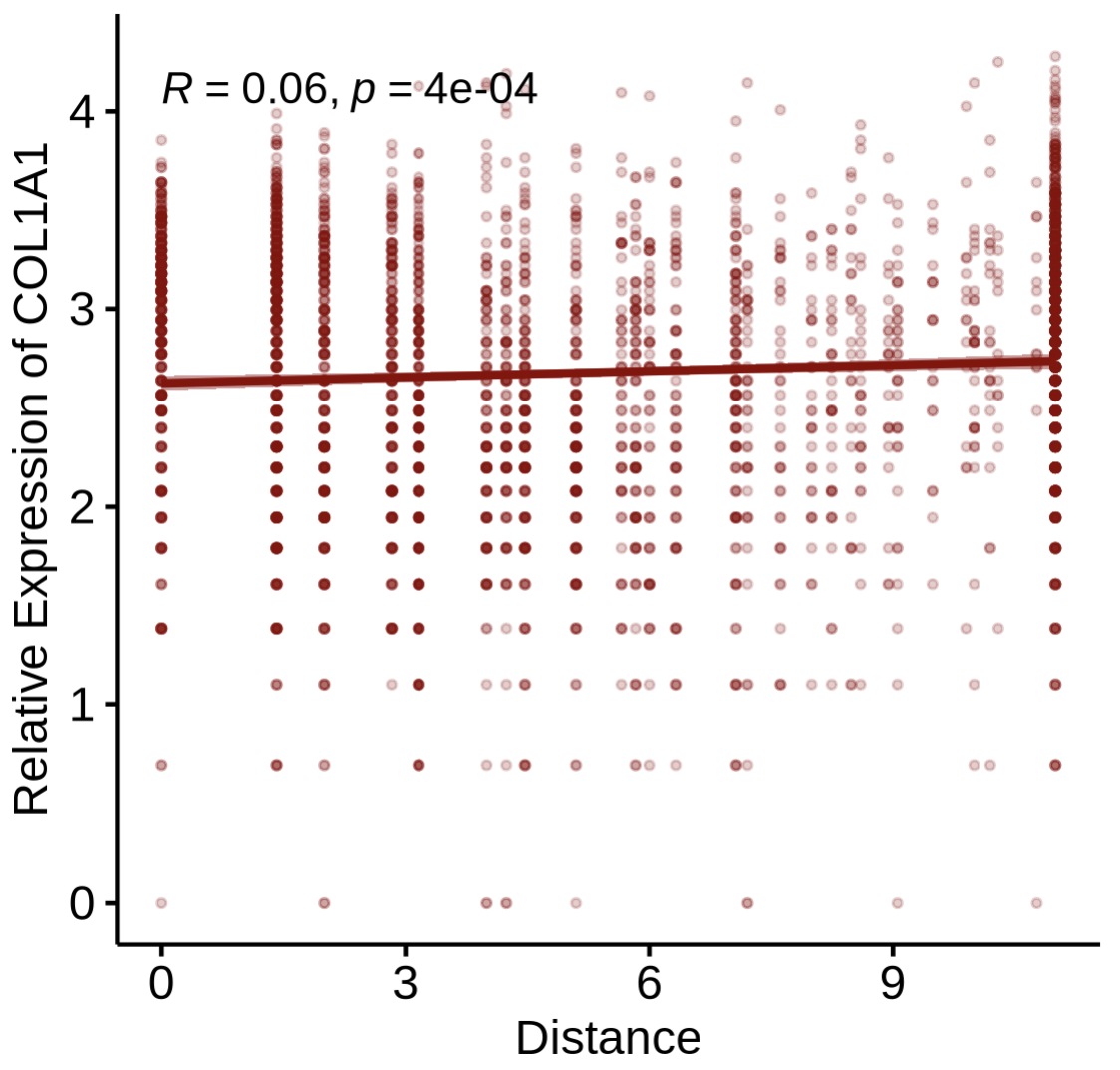

Goal: relate expression to distance (rather than strength) from reference spots.

PlotDisExpr(
  st1.t1,
  df.res,
  ref_col   = c('darkred'),
  gene      = 'COL1A1',
  log.trans = FALSE
)

Step4-3 — Correlate cell-type proportion with distance

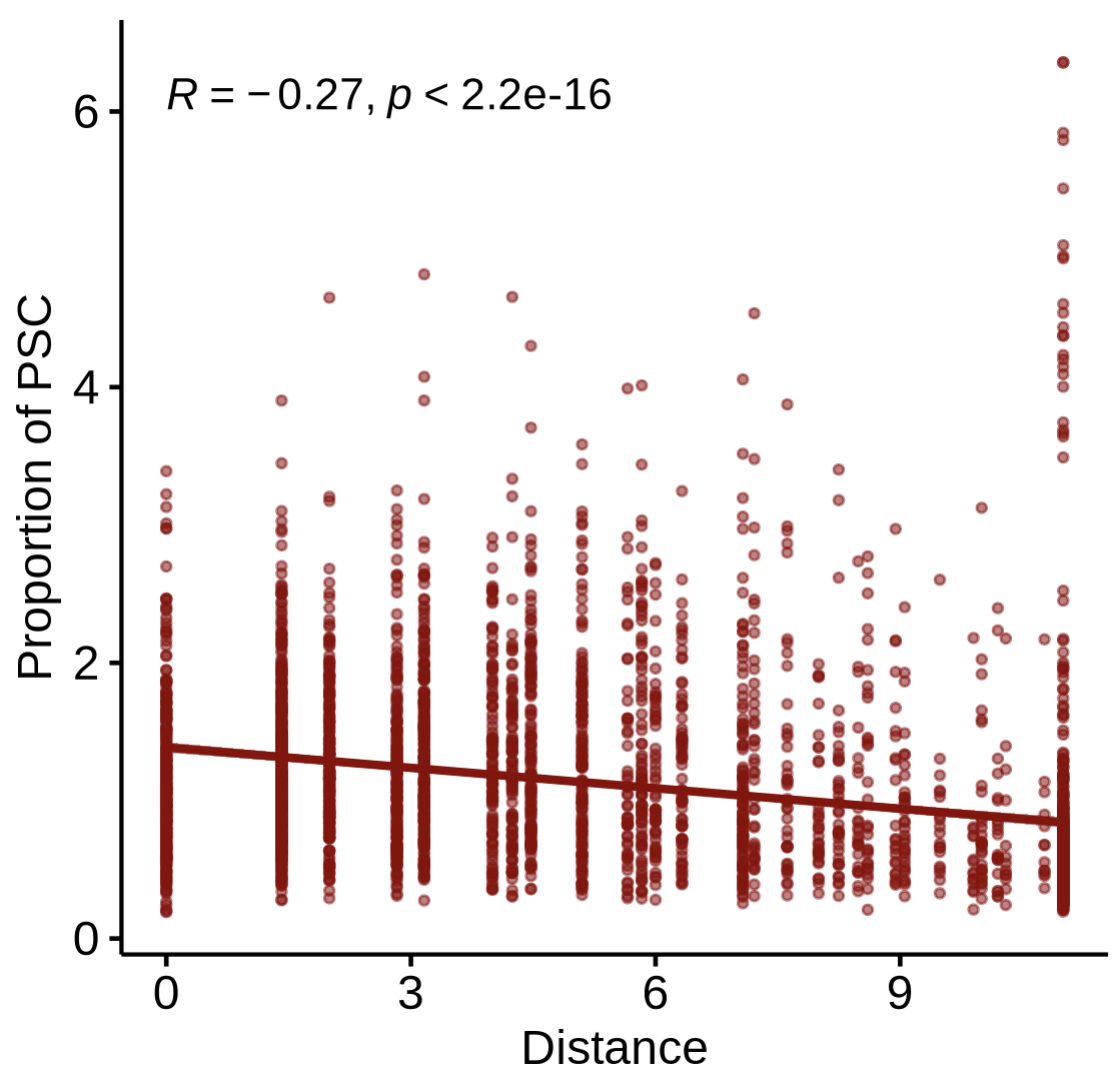

Goal: test whether the proportion of another cell type changes with distance from the reference spots.

PlotDisProp(
  st1.t1,
  df.res,
  ref_col    = c('darkred'),
  prop_cell  = 'PSC'     # name of the proportion column for the target cell type
)

Tips & Notes

  • Reference label: ensure the Step1 label ('MDSC_spot') indeed contains the “primary” references.

  • Distance scale: for Visium, max.r = 4 is often a good biological radius (~200 μm); tune to your tissue.

  • Model choice: 'Linear', 'Log', and 'Exp' encode different decay assumptions for strength—pick what best matches your biology.

  • Reproducibility: fix a random seed if you subselect spots for demos; re-run on full data for publication figures.

Advanced function

We also accept user-defined decay function as input. Here is a simple demo for a self define decay function: \(\mathrm{Decay}= e^{-d^2/10}\), where \(d\) is distance. This can be applied by set model ==‘diy’ and pass the decay function (my_gaussian_decay() in the below sample) in CalcNearDis() function.

# 1. Define your custom function
my_gaussian_decay <- function(d) {
  return(exp(-(d^2) / 10))
}
# 2. Call the main function
df.res_diy <- CalcNearDis(
  st1.t1,
  celltype      = 'MDSC_spot',
  pheno_choose  = NULL,       # NOT RECOMMENDED now
  calc.strength = TRUE,
  model         = 'diy',
  max.r         = 10,
  self_decay = my_gaussian_decay
)

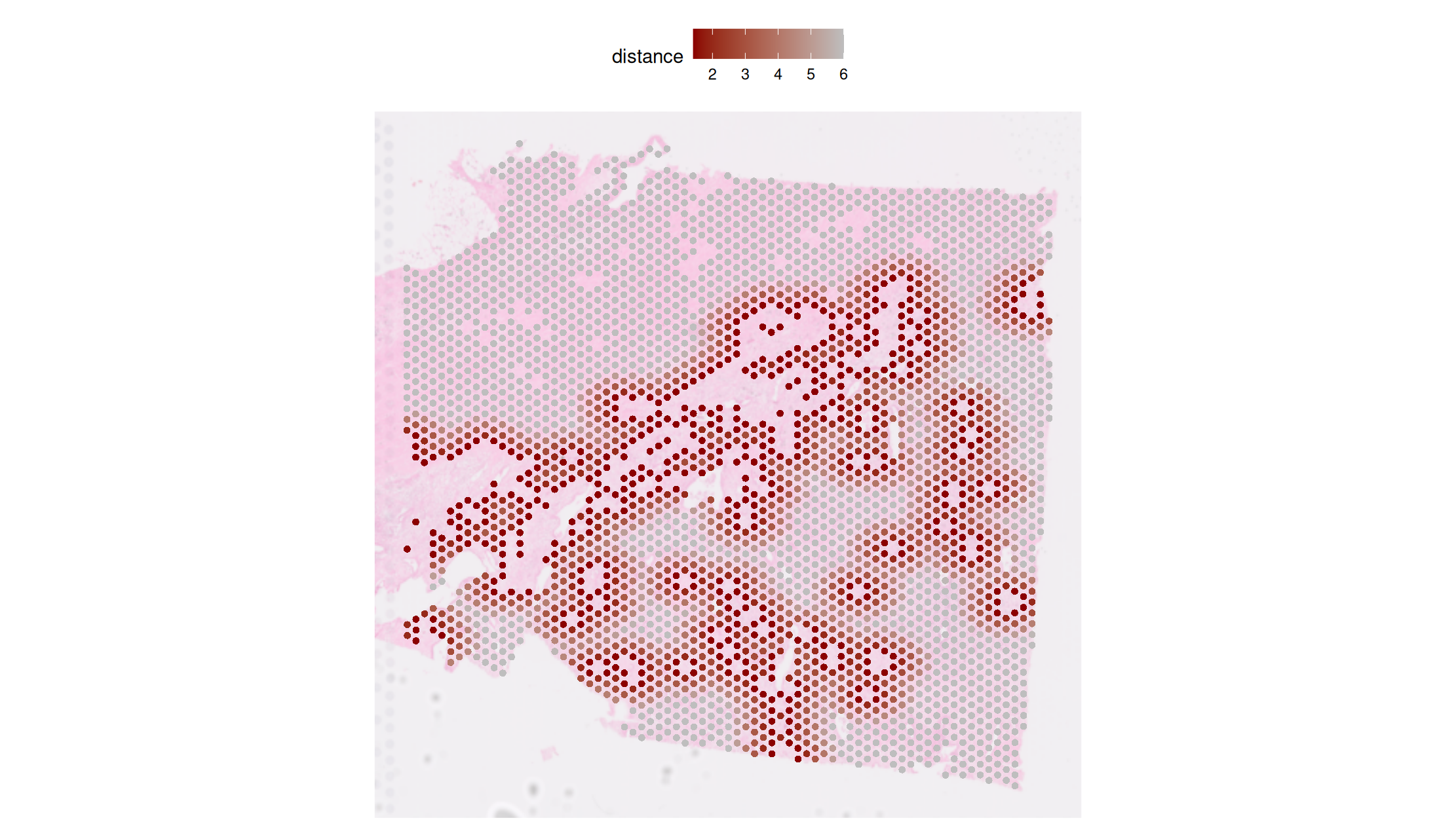

PlotNearDis(
  st1.t1,
  nearest_ref_info = df.res_diy,
  color            = c('darkred','gray'),
  shape            = 21,
  max.dis          = 6,
  image.alpha      = 0.5,
  img.use = 'lowres',
  pt.size.factor   = 4e3
)
##note: if necessary, the title of panel should be modified according to user's input function.

Session info

sessionInfo()
